NIM control unit front panel FP123

Deliverable only completely installed and tested

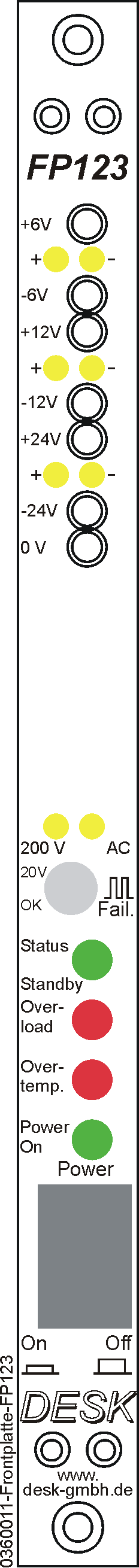

DESK_GmbH_0360011-Frontplatte-FP123










Control- and operating unit for NIM crates; 5 HE; 17.0 mm width

Frontpanel-FP123

Totally modular construction; all lines separable via plug connector according to the DESK-internal standard;
compatible to the no longer available FP122

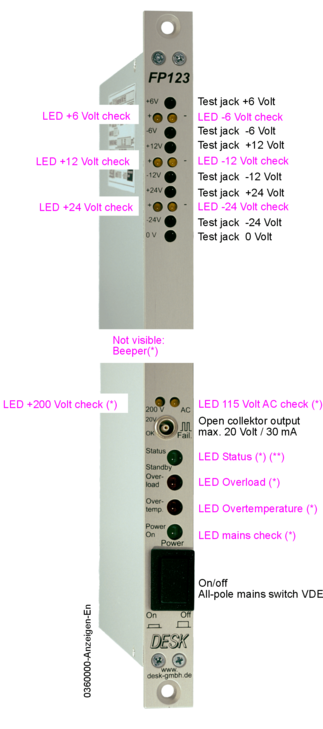

Test sockets 2mm for +-6 Volt, +-12 Volt, +-24 Volt and 0 Volt
Monitoring- and signal output via an integrated LEMOsocket
Control of operation voltage via a green LED
VDE-approved power switch (pressure switch) with VDE-quality-mark
Display for AC 117 Volt (*) and DC 200 Volt (*) via LED 3mm
Status display (*)
Displays for overload (*) and overtemperature (*)
Error signalling via miniaturised loudspeaker (*)
Stable mechanics made of aluminum alloys
2 years guarantee
As a matter of course, we take back all of our products after the end of service life and take care for a proper disposal.
(*) A light display only appears if the corresponding signals resp. voltages are being generated within the power supply.

(*) A light display only appears if the corresponding signals resp. voltages are being generated within the power supply.
(**) If the power supply is switched off, the green status display simultaneously functions as the standby display.

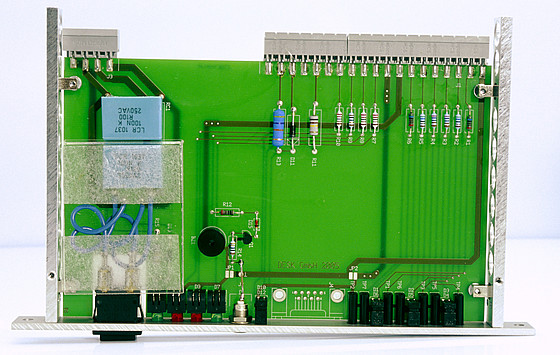

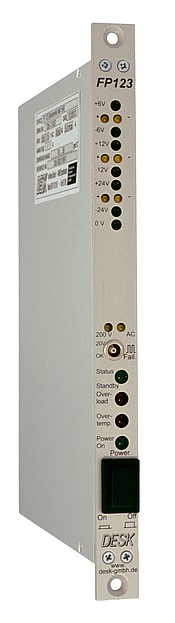

Control unit front panel FP123Article no 036 000 0

Back to top of page “Control unit FP123 for NIM crates”

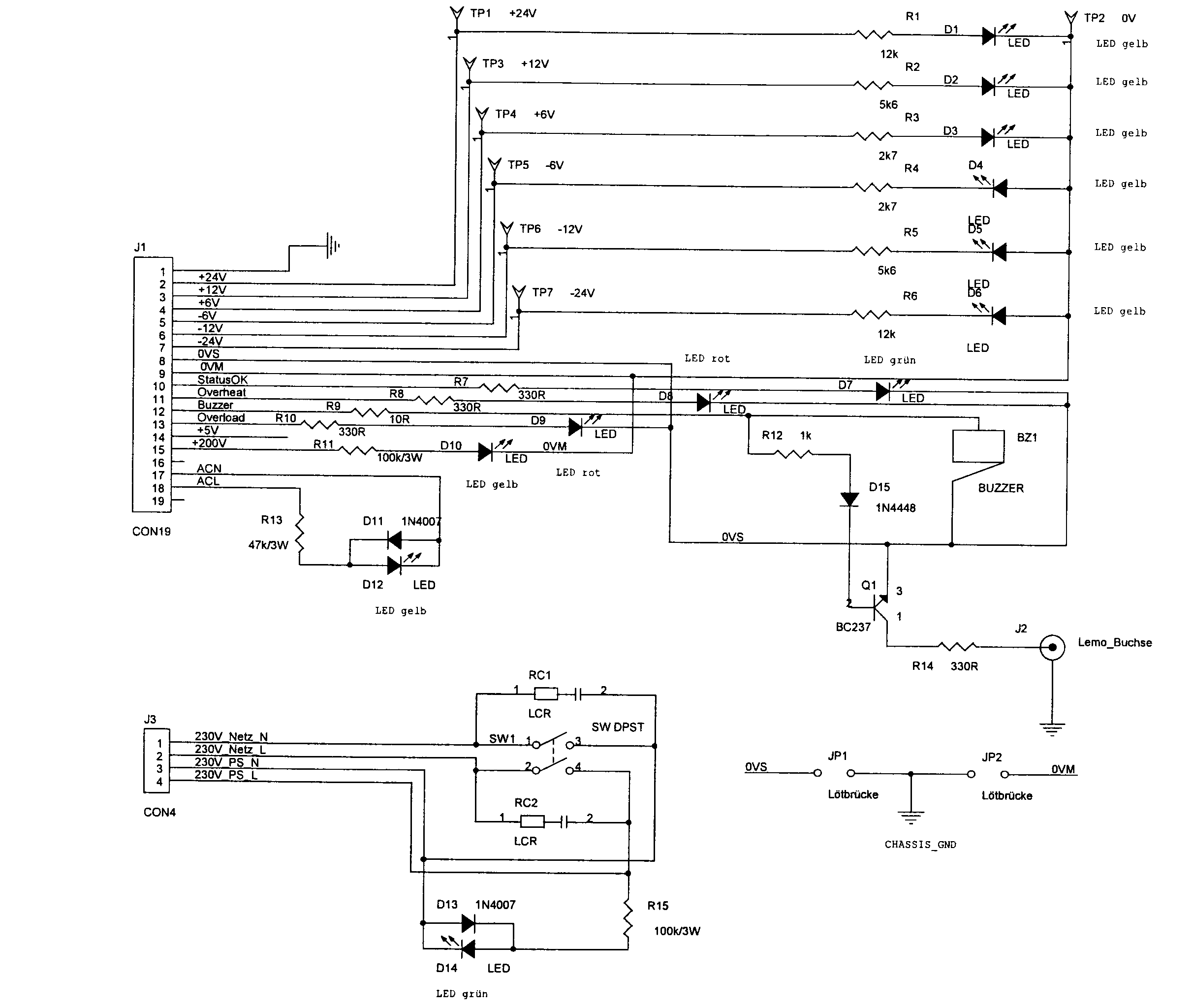

NIM control unit front panel FP123 circuit diagram

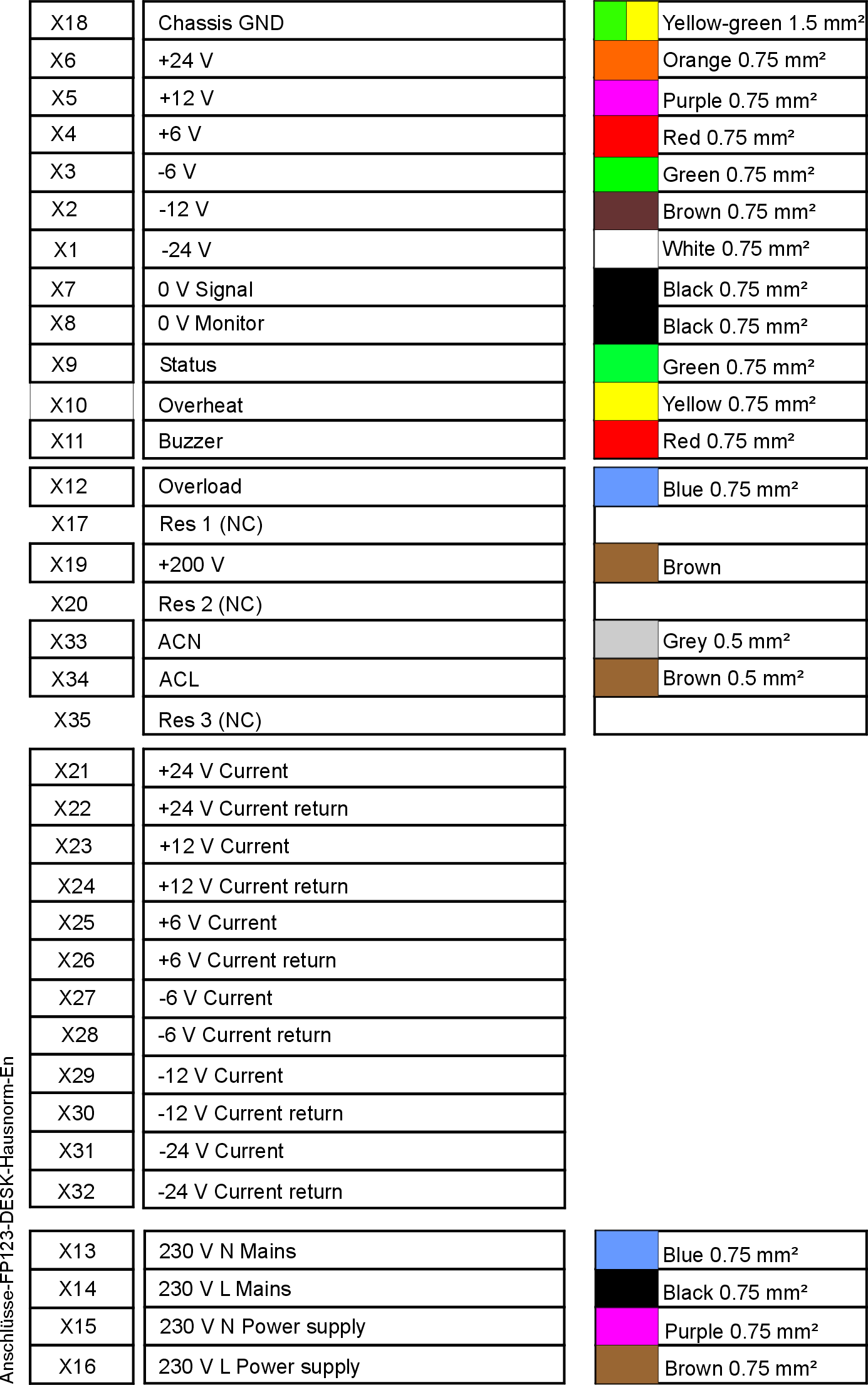

Ports FP123 according to the DESK-internal standard

DESK_GmbH_Anschlüsse-FP123-DESK-Hausnorm
The displayed colours for the cables of the single ports are default settings and do not necessarily have to be fulfilled in each crate.

Back to top of page “Control unit FP123 for NIM crates”

Plug to FP123

Plug for mains 4-poled

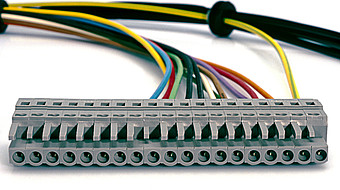

Plug for voltages 19-poled

Plug for mains 4-poledArticle no 9 036 020
Plug for voltages 19-poledArticle no 9 036 022

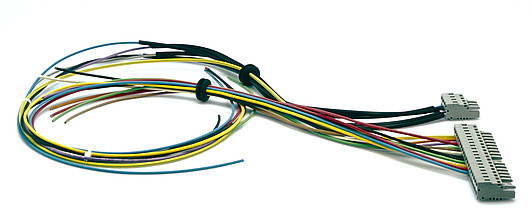

Connection cable FP123 completeArticle no 071 119 0
